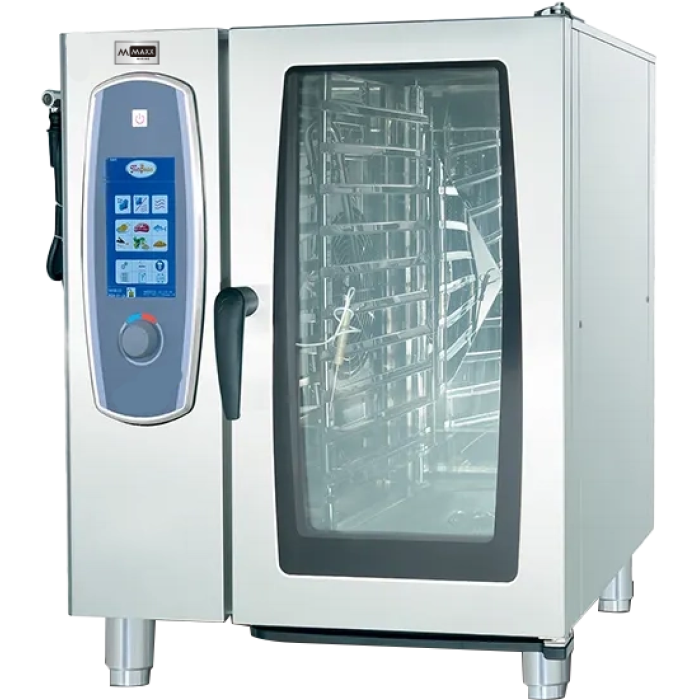

10 Trays 440V-60Hz Combi-Oven MAXX-CO10P1/1JE-440V For Marine


Electric Combi Ovens

One-Touch Cooling Function

Multi-mode Automatic Cleaning

Steam Mode (30⁰C ~ 130⁰C)

Hot Air Mode (30⁰C ~ 300⁰C)

Bake Steam Mode

Configure Sensing Probes

Double Layer Heat Resistance Tempered Glass

Two-Stage Safety Door Design

High-Pressure Nozzle

Rustproof Anti-Blocking Drain

Compare

Features:

Freestanding Electric Combi Oven
10 Trays (Capacity: 10*1/1GN)
Pan Size: 1/1, 1/2, 1/3, 2/3 GN
Thickened Stainless Steel Body
Customized to use for the Marine Industry
Double Glazing Insulation
Multi-menu supports storage upto 100 menus
Digital Touch Panel
Tempered Double layered glass
Energy Efficient
Dimensions: 850 x 836 x 1120 mm
Electrical Specs: 440V-60hz-3Ph



SKU: 5487FB8/22-2-1-1-1-1-4 Categories: ,
Brands

MAXX

Technical Specifications

Model MAXX-CO10P1/1JE-440V
Type Fully Automatic
Application Industries Restaurant, Hotels, Retail, Food & Beverage Shops
No. of Programs 50
Capacity 10 pans x 1/1GN
Specification 1 Deck 10 Trays
Capacity (Ltr) 225 Ltr
Tray Size 530 x 325 x 40 mm
Pan size 1/1, 1/2, 1/3, 2/3 GN
Max. Temperature 30℃ ~ 300℃
Baking Temperature 30°C ~  300°C in just 5 minutes.
Steam Temperature 0°C ~  100°C
Humidity 130°C in just 5 minutes.
Output 30 – 80
Infall R3/4”
Outfall DN 50
Water pressure 150 ~  600KPA
Operation type Touch Panel Operation
Display Function 10-inch high-definition display, Intelligent touch-screen operation, multi-function panel, one-key start.
Menu Storage Quantity up to 100 recipes
Self-Cleaning Auto / Manual
Safety Feature Built-in safety lock, Emergency suspension of the door opening, Over-temperature suspension
Cabinet Material 304 Stainless Steel
Cabinet Dimension 440 x 670 x 770mm
Grid-shelf size 536 x 334 mm
Water Pressure connects 0.150.6 Mpa
Electrical Specification
Roast Power 18 KW
Steam Power 18 KW
Baking Power 18 KW
Power 18.6 KW
Fuse 3 x 32 A
Voltage 440V ~ 480V
Phase 3 ph
Frequency 60Hz
Shipping Details
Dimension (WxDxH) Product 850 x 836 x 1120 mm
Packing 1020 x 930 x 1320 mm
Weight Net / Gross 135 / 150 kg
