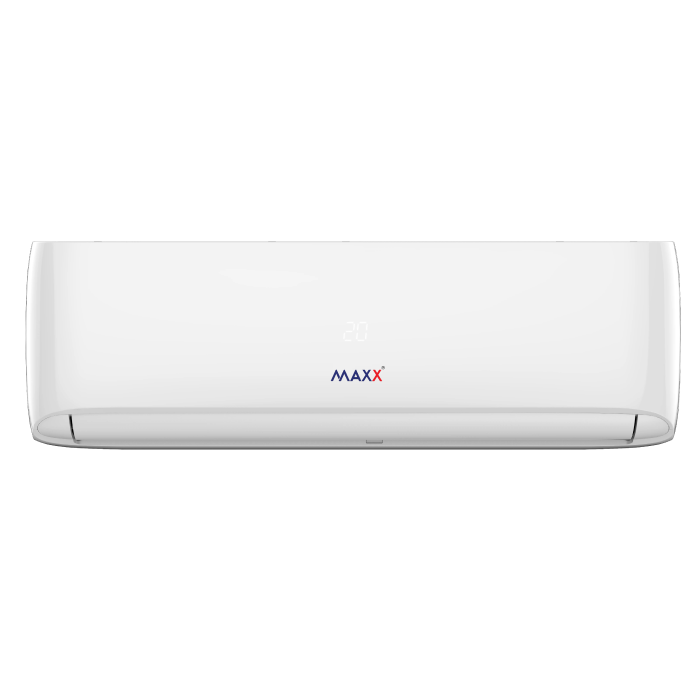

2.0 Ton 220V-50Hz Inverter Split Air Conditioners MAXX – SPAC-24SY For Marine


Ref: IMPA Code –  174782

Split Type Air Conditioner

Marine Variant

Inverter Compressor

Environment-friendly R32 Refrigerant/Gas

Turbo fast cooling system

Multi-functional remote control

Compare

MAXX – SPAC-24SY
Capacity: 24000 BTU, 2.0 ton
Split Type Air Conditioner
Marine Variant
Inverter Compressor
R32 Refrigerant/Gas
Turbo fast cooling system,
Multi-functional remote with Digital Display,
50Hz-220-240V-1PH
(3 meters installation kits included)

SKU: 5487FB8/22-17-2-3-1-1-1-1-2-1-2-2-1 Categories: , , , ,
Brands

MAXX

Technical Specifications

Model MAXX-SPAC24SY
Capacity (Ton) 2 Ton
Capacity (BTU) 24,000
Capacity 2.05 HP / 7.03 kW
Type Split
Operational Temperature 16°C – 45°C
Ambient Temperature 7°C – 43°C
Application Area 30 – 55 m³
Auto Swing Louver Horizontal
Air Flow Volume 960 m³/h
Auto Restart Yes
Auto Swing Yes
Temperature Indicator Yes
Remote Display type LCD
EER Cooling 8.50 W/W
Max. Discharge Pressure 4.2 Mpa
Max. Suction Pressure 1.2 Mpa
Compressor Type Inverter
Refrigerant R32
Refrigerant Charged 1000 g
Noise Level – Indoor 33 / 43 / 46 dB (A)
Noise Level – Outdoor 55 dB (A)
Splash Proof IPX 4
Pipe Connections
Liquid 1/4″ (Ø 6)
Gas 1/2″  (Ø 12)
Max. distance between Indoor and Outdoor 15 meters
Max. diff. in level between Indoor and outdoor 5 meters
Electrical Details
Voltage 220~240V-1-50Hz
Max. Input Current (Amp) 15.5 A
Max. Input Power (Watts) 2680 W
Shipping Details
Product Dim. – Indoor 959 x 341 x 226 mm
Product Dim. – Outdoor 830 x 295 x 550 mm
Box Dim. – Indoor 1048 x 390 x 305 mm
Box Dim. – Outdoor 905 x 373 x 599 mm
Indoor unit weight(Net/Gross) 16 / 14 kg
Outdoor unit weight(Net/Gross) 35 / 32 kg
Certification ISO 9001 : 2008
