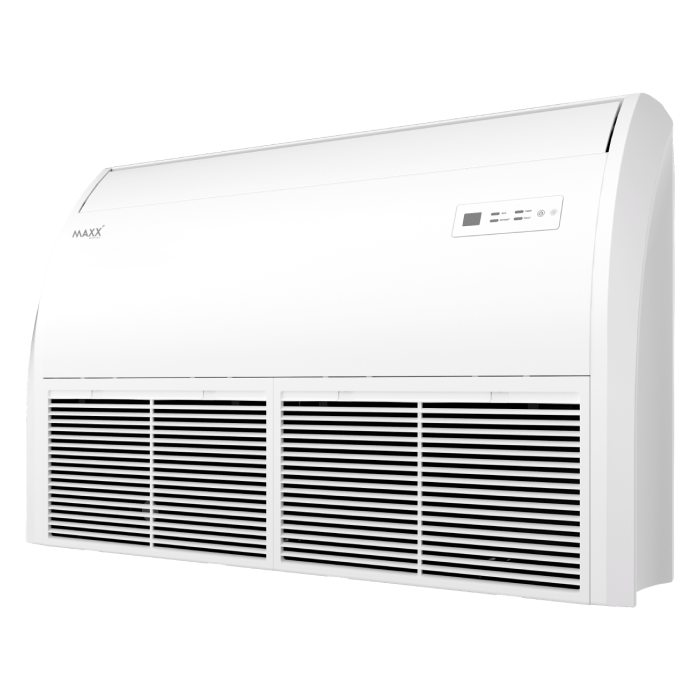

MAXX FLCEAC36SY-220
Capacity: 36000 BTU/HR, 3Ton
Floor standing Type
Inverter Compressor
Refrigerant: R410
Commercial Compressor
Low Power consumption
Dim: Indoor –
Outdoor: 980 x 805 x 330 mm
50HZ-220V
Air Conditioning, Floor Ceiling, Floor Ceiling 220V-50Hz
3 Ton 220V-50Hz Inverter Floor Ceiling Air Conditioners MAXX FLCEAC36SY-220 For Marine
Ref: IMPA Code – 174782
Arriving soon
Compare

Brands | MAXX |
---|
Technical Specifications
Model | MAXX-FLCEAC36SY -220 | ||
Capacity | TON | 3 Ton | |
BTU | 36000 (12550~37500) | ||
HP | 3.5 HP | ||
kW | 10.5 | ||
Type | Floor Standing | ||
Operational Temperature | 16°C ~ 32°C | ||
Ambient Temperature | 0°C ~ 48°C | ||
Application Area | 40 ~ 65 m³ | ||
Auto Swing Louver | Horizontal | ||
Indoor Air Flow Volume (Hi/Mi/Lo) (1m³/h=0.5883CFM) | 1900/1700/1500 m³/h | ||
Auto Restart | Yes | ||
Auto Swing | Yes | ||
Temperature Indicator | Yes | ||
Remote Display type | LCD | ||
EER Cooling | 10.2 W/W | ||
Max. Discharge Pressure | 4.9 Mpa | ||
Max. Suction Pressure | 1.6 Mpa | ||
Compressor Type | Inverter | ||
Refrigerant | R410A | ||
Refrigerant Charged | 3000 g | ||
Noise Level – Indoor | 46 – 52 dB (A) | ||
Noise Level – Outdoor | 58 dB (A) | ||
Splash Proof | IPX 4 | ||
Pipe Connections | |||
Liquid | 9.52 mm | ||
Gas | 15.88 mm | ||
Max. distance between Indoor and Outdoor | 20 meters | ||
Max. diff. in level between Indoor and outdoor | 10 meters | ||
Electrical Details | |||
Voltage | 220~240V-1-50Hz | ||
Max. Input Current (Amp) | 21.5 A | ||
Starting Current | 67 A | ||
Max. Input Power (Watts) | 4100 W | ||
Connection Wiring | Power Wiring | 3×4.0/3×1.5 mm² | |
Signal Wiring | 3×4.0/3×1.5 mm² | ||
Shipping Details | |||
Product Dim. | Indoor | 1670 × 675 × 235 mm | |
Outdoor | 900 x 340 x 690 mm | ||
Box Dim. | Indoor | 1750 × 770 × 325 mm | |
Outdoor | 1002 x 425 x 755 mm | ||
Weight (Net/Gross) | Indoor | 15 / 17 kg | |
Outdoor | 46 / 50 kg |
