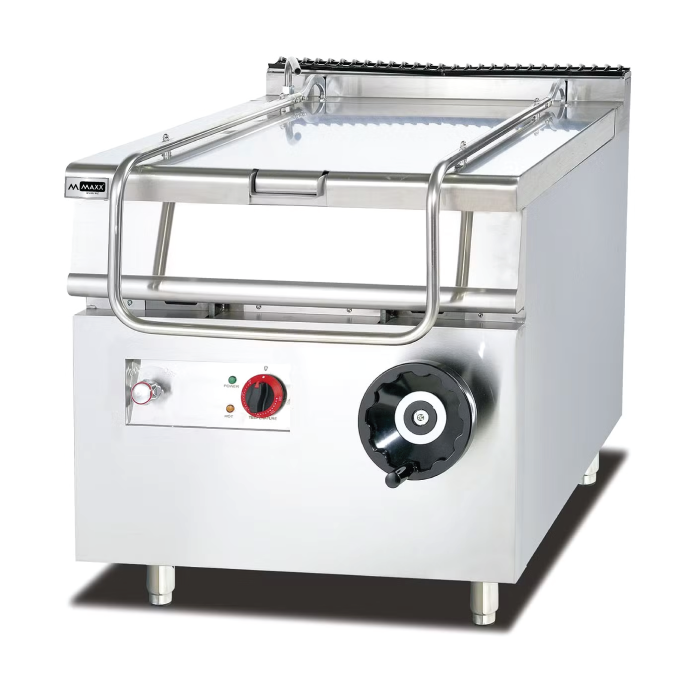

Freestanding Electric Tilting Braising Pan
Sleek, Modern Design
Precise Temperature Controls
User-Friendliness & Easy Maintenance
Commercial Grade
Highly Efficient
Stainless Steel Body
Compare
Features:
Freestanding Electric Tilting Braising Pan
80 Ltr Capacity
595 x 528 mm – Pan size
Stainless Steel Heavy Duty Body
Precise Temperature Controls
Manual Tilting
Attached Water Faucet for easy filling of Water
Temperature ranges 50°C – 300°C
Auto Cut-off to prevent Dry Burning
User-Friendliness & Easy Maintenance
440V-60Hz-3Ph
Product Dimension: 800 x 900 x 920 (120) mm
| Brands | MAXX |
|---|
| Model | MAXX-TBP80LVI 440V |
| Power Source | Electric |
| Type | Floor Standing |
| Capacity | 80 L |
| Pan Dimension | 595 x 528 mm |
| Tilting Type | Vertical |
| Tilting Angle | 15° – 45° |
| Tilt Mechanism | Manual by Tilt Control Wheel |
| Controller | Thermostatic Temperature Control |
| Temperature Range | 50°C – 300°C |
| Tilting Mechanism | Manual type |
| Safety Feature | Auto Cut-off to prevent Dry Burning |
| Safety Thermostat | Yes |
| Cooking Functions | Braising, Boiling, Steaming, Poaching, |
| Stewing, Roasting, Deep-Fat Frying & Shallow Frying | |
| Body material | Stainless Steel |
| Tap Connection | Yes |
| Water Feed Type | Swiveling Faucet attached on Top |
| Electrical Specification | |
| Power | 10.2 kW |
| Voltage | 440V – 480V |
| Phase | 3 ph |
| Frequency | 60Hz |
| Shipping Details | |
| Product Dim. – (WxDxH) | 800 x 900 x 920 (120) mm |
| Box Dim. – (WxDxH) | 880 x 970 x 1080 mm |
| Weight (Net / Gross) | 140 / 150 kg |
