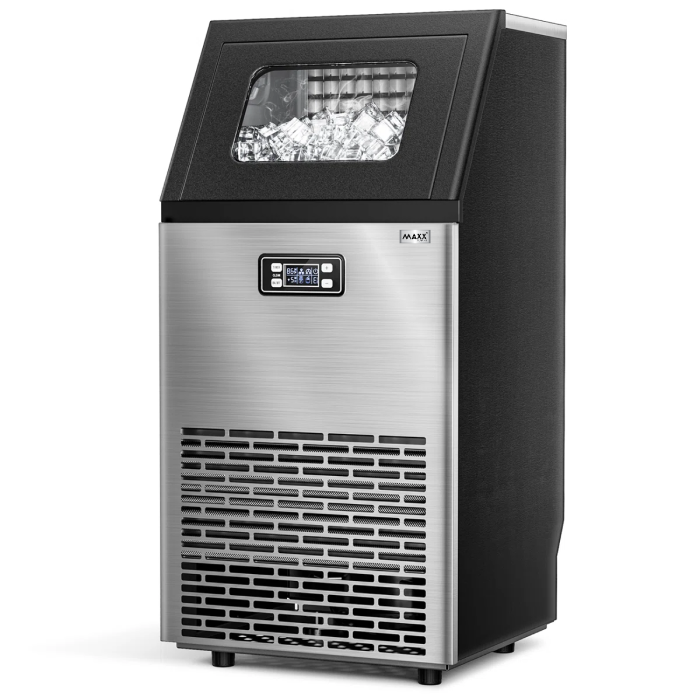

92 Kg 220V-60Hz Ice Cube Maker MAXX-COIM92HU 220V For Marine


Ref: IMPA Code – 174657

Fully automatic

Adjustable feet

Ice cubes approx. dims. 22 x 22 x 22mm

Easily removable condenser filter

Ice production may fluctuate based on ambient and water temperature

Drain required (pump needed if drain above the outlet)

Complete with ice scoop, water and drain hoses

Lower water consumption

Compare

Features:

Ice capacity: 92 kg/24h
Ice basket capacity: 22 kg
Refrigerant:  R290
Ice Making Time: 12 min
Robust Stainless Steel Body
Ice full & Water deficient alarm
Water inlet through Pipe connect.
Soft Touch Controls
Pipe connects
LCD Display Type
Input power: 760W
Voltage/Frequency: 220V/60Hz
Dimension (WxDxH): 435 x 556 x 832 mm



SKU: 5487FB8/22-2-1-1-1-1-2-3-1-1-2-1-1-1-1-1-1-1-1-1-1-2 Categories: , , ,

Technical Specifications

Model MAXX COIM92-HU
Capacity 90 kg / 24 hours
Number of Ice Cubes per Cycle 45 cubes
Ice Cube Size 22 x 22 x 22 mm
Ice Production Time 12 min
Ice Storage Volume 90 L
Storage Capacity 22 kg
Water Consumption (L/24h) 100 L
Water Supply Type Automatic
Compressor Cubigel
Climate Class SN/N/ST/T
Refrigerant Gas R290 / 75 g
Operating Temperature 10 – 38℃
Insulation Material Cyclopentane
Insulation Agent (Foaming Material) C₅H₁₀
Water Supply Pressure 0.04 – 0.6 MPa
Electrical Features
Power (W) 760 W
Ice Maker Current (Amps) 2.0 A
Ice Collector Current (Amps) 2.2 A
Voltage 220V – 240 V
Frequency 60 Hz
Current 13 A
Shipping Information
Product Dimensions (L x W x H) 435 x 556 x 832 mm
Package Dimensions (L x W x H) 516 x 634 x 908 mm
Weight Net / Gross 35 / 39 kg
