650 Ltr 220V-50/60Hz Upright Freezer MAXX – UF650 ND

Ref: IMPA Code –  174649

Single Door Freezer

Commercial Marine Grade

Stainless Steel Body

Adjustable Shelves


Model: MAXX – UF650 ND
Interior Volume: 650 Ltr
Stainless steel exterior and interior body
Patented aesthetic design
Wide internal volume
All doors with anti-drop heating elements
Unbreakable Zamak door hinges
Self-closing doors which can be free standing at 45°
“Ozone friendly” polyurethane insulation (60 mm thickness)
Plastic coated adjustable interior shelves
Energy saving high insulated body with 40 kg/m³ density
CFC free, R-404 A refrigerant gas
Ventilated, removable compressor
Gas condensation container
Cooling with fan
Compressor location on Top
Unoxidized antibacterial painted, evaporator with copper pipe and aluminum panel
With expansion valve and heating element system avoiding evaporator blockage
Stainless steel evaporator panel
Operating temperature between -22°C and -18°C (43°C tropical)
Electronically controlled temperature and defrost indicator
Curved interior bottom body
Capacity, 2/1 GN tray
Voltage (V): 220/240 V – I – 50/60 Hz



Technical Specifications

Model ‎MAXX – UF650 – ND
Net Capacity ‎650 liters
Installation Type ‎Freestanding
Form Factor ‎Single Door
Body Type ‎St. Steel
Defrost System ‎Direct Cool
Compressor Location ‎On Top
Number of Shelves 3
Refrigerant ‎R404 A
Electrical Details
Voltage 220V
Frequency 50/60Hz
Electric Power ‎719 kW
Shipping Details

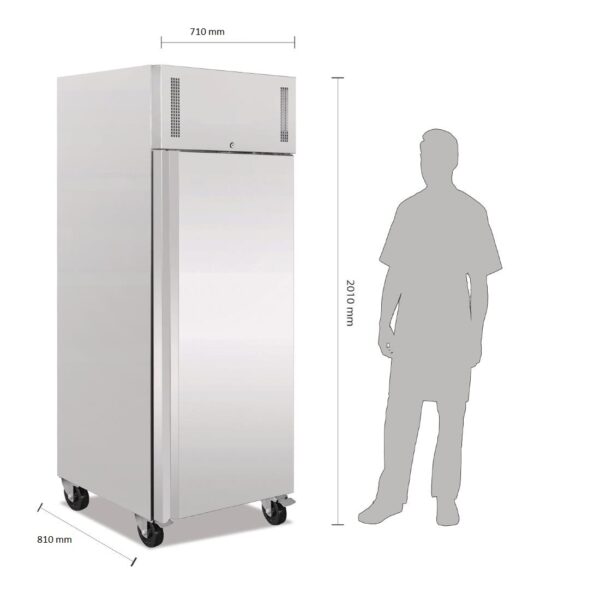

Dimensions (WxDxH) 71 x 81 x 210 cm
Weight (Net / Gross) 130 / 140 kg
