3-Point mounting system
Power: 0.75 (3/4) Hp
Safe to use – designed without blades
Quiet operation
Easy to install – can easily be fitted to new or existing sinks
Dispose of most food waste instantly
Advance Insulation Material
110V-60hz
Food Waste Disposers, Food Waste Disposers IMPA, Galley Equipment, IMPA, IMPA 175582

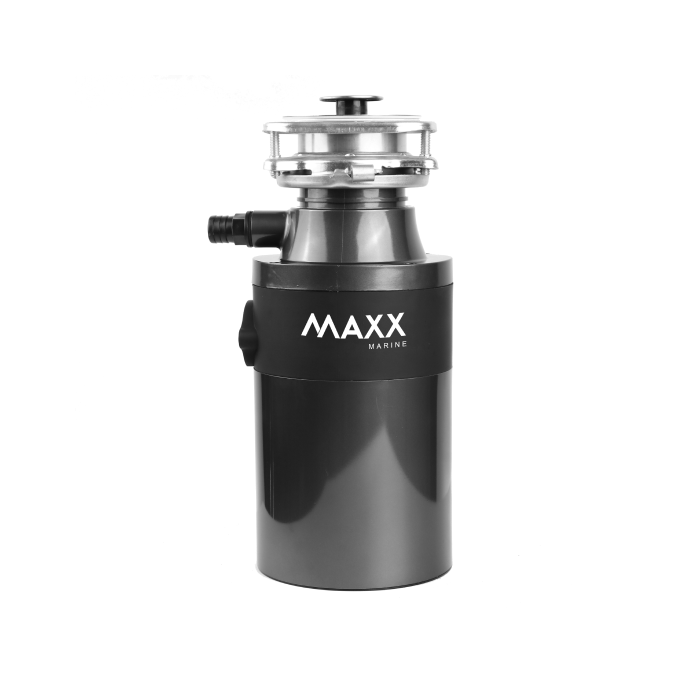

Waste Disposer 110V MAXX – FD-0.75HL-110 For Marine
The ideal choice for large households or those who have a large amount of food waste to dispose of, the MAXX Waste Disposal unit grinds your food scraps quickly, efficiently and hygienically, reducing the need to fill your kitchen bin.
Ref: IMPA Code – 175581
0.75 (3/4) Hp Power
3-Point Mounting System.
Anti-Corrosion Stainless Steel Cutter
Built-in air switch
Low Noise Operation
1-stage stainless steel grinding system
Compare
| Brands | MAXX |
|---|
Technical Specifications
| Rated Power | 3/4 (0.75) Hp |
| Type of Feed | Continuous |
| On/Off Control | Built-in Air Switch |
| Motor | Single Phase |
| Time Rating | Intermittent |
| Lubrication | Permanently Lubricated Upper & Lower Bearings |
| Grind Chamber Capacity | 980 ml |
| Average Water Usage | Approximately 4.0 L per Person per Day |
| Grind Technology | 1-Stage Grind Technology |
| Grinding Level | Class 4 |
| Rotating Speed | 3600 rpm |
| Grinding Cavity Volume | 1400 ml |
| Crushing Cavity | 4.5 kg/m |
| Grinding Ability/Crushing Particle | <1.0 mm |
| Optional Sink Connector | 114 / 140/ 145/ 160 /165 /180mm |
| Motor Type | Permanent Magnet DC motor |
| Grinding Chamber Material | Stainless Steel 304 |
| Grinding Cutter/Blade | Stainless Steel 304 |
| Feeding Month Material | Stainless Steel 304 |
| Housing Material | High Strength PA6 Plastic |
| Control Way | Air Switch/Remote Control |
| Noise Level | <50db |
| Sound Insulating System | Innovative Noise Reduction Technology |
| Safety Protection | Overload |
| Dishwasher Drain Outlet | Yes |
| Drain Connection | 1-1/2″ (3.81 cm) |
| Includes | Disposer, Quick-lock sink mount, Quiet collar sink baffle, Wrench, Stopper, Antivibration mount, power cord kit, air switch, drain pipe, dishwasher interface, bolts, and Crew Press Plate. |
| Electrical Details | |
| Power (W) | 390W / 560W |
| Voltage | 110V |
| Frequency | 60hz |
| Average Electrical Usage | 3-4 KWH / year |
| Shipping Details | |
| Product Dimension (WxDxH) | 160 x 166 x 362 mm |
| Packing Dimension (WxDxH) | 170 x 175 x 421 mm |
| Weight (Gross/Net) kg | 7.3 / 6.5 kg |
