22 Kg 440V-60Hz FL Washing Machine MAXX-COMW22EW 440V Para sa Marine


Ref: IMPA Code –  175501

Uri: Front Load Commercial Washing Machine, Marine Variant, Fully Automatic.

Capacity: 22 kg / 48.4 Lbs

Full Mold One-Time Cast: Gumagamit ang buong makina ng iisang mold para sa lahat ng bahagi. Isang robot ang nag-we-weld sa mga bahagi para sa tumpak at walang kapintasang gawa ng produkto.

UVC disinfection Function: The actual UVC light will be activated as soon as the washing cycle begins. The cylinder will be exposed to the disinfection light the entire time the washing cycle is running, providing an extra level of sanitation. This can efficiently eliminate bacteria.

Cylinder disinfection program: To eliminate customers’ concerns about cross-infection, we develop a disinfection program to let them pre-wash the cylinder before washing the clothes

Touch Screen: Madaling i-opereyt at basahin ang malaking touch screen. May 5-inch at 7-inch na opsyon. Suportado ang 13 wika para sa iba’t ibang consumer sa buong mundo.



Compare

Features

Model:                                MAXX-COMW22EW 440V
Type:                                   Hard Mount Fast Spin Washer Extractor
Capacity:                            22 kg / 48.4 Lbs
Extraction Speed:             700 rpm
G-Factor:                            207
Stainless Steel body frame and Drum
Multi-language panel with LED Display for easy operational
Fully automatic
Marine Variant Commercial Grade
Automatic liquid detergent supply
High extraction force for efficient dewatering
User-Friendly Operating Panel
Long-term savings
Voltage:                               60Hz-440V-3Ph

Teknikal na Detalye

Modelo MAXX-COMW22EW 440V
Type High-Speed Washing and Spinning Machine, Fixed Installation
Drum
Load Capacity (Kg/Lbs) 22 kg / 48.4 Lbs
Drum Volume (L) 194
Drum Diameter (cm) 74.5
Drum Depth (cm) 45.5
Bilis
High Speed (rpm) 700
Washing Speed (rpm) 32
G-Force 207
Pangkalahatang Tampok
Drum Material Stainless Steel 304
Housing Material Stainless Steel 304
Control Type OPL
Structure Type OPL, Independent
Operation Electronic Microprocessor / Programmable
Panel Language Options English, Thai, Polish, Spanish, Italian, Malay, etc.
ECO Consumption 60°C Full Load 16 kg Half Load 9 kg
Total Duration (min) Washing 25-30 min Spinning 30-35 min
Water Consumption (cold + hot) L 70-80 L
Mga Koneksyon

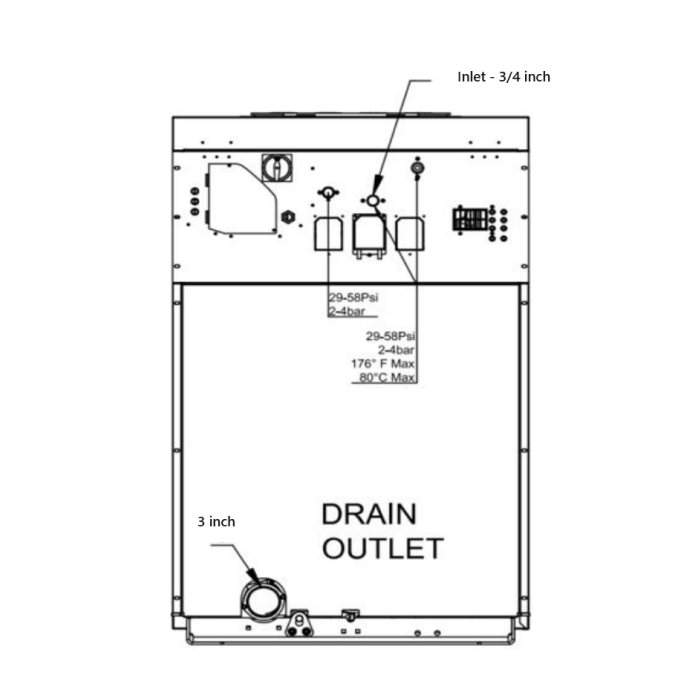

Water Valves Size 1/2 inch
Water Pressure (kPa) Capacity (L/min) 0.1 – 1.0 MPa
Inlet Valve (inch) ø 3/4 inch
Drain Valve (inch) ø 3 inch, 90 degrees
Drain Capacity 180 L/min
Liquid Detergent Supply 5 signals for liquid soap
Datos na Elektrikal
Voltage 440 – 480V
Frequency 60Hz – 3 Phases
Phase 3 Phases
Required Fuse (Amp) 5 A
Motor (kW) 2.2 kW
Heating (kW) 16 kW
Total Power Motor + Electric Heating + Inverter (kW) 20.4 kW
Detalye ng Shipping

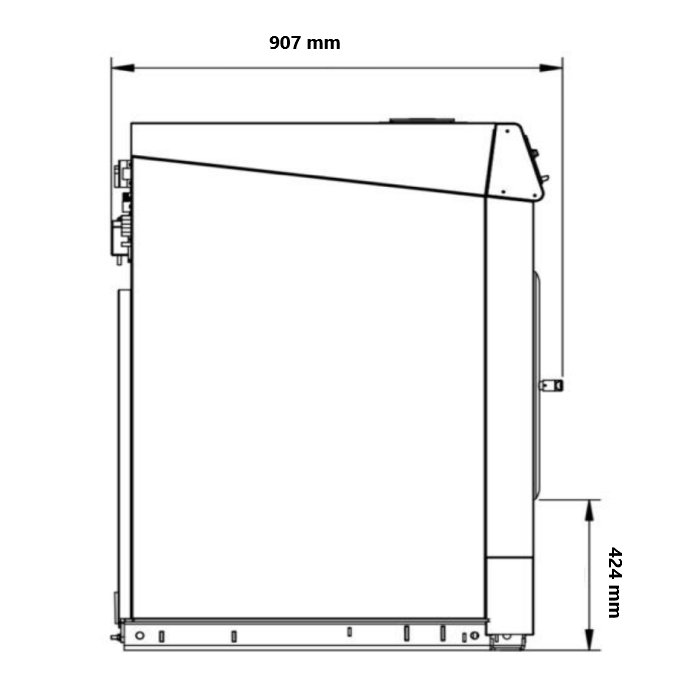

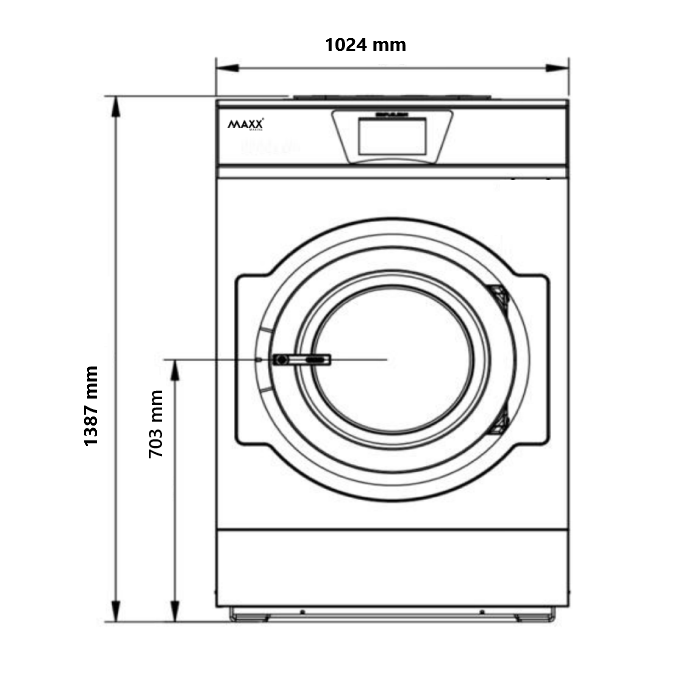

Product Dimensions LxWxH (mm) 907 x 1024 x 1387
Distance From Floor – Bottom of Door (mm) 424
Distance From Floor – Door Handle (mm) 703
Packed Dimensions LxWxH (mm) 1027 x 1144 x 1537
Gross / Net Weight (kg) 326 / 286
Shipping Volume 1.803 m³
