5 Ton 440V-60Hz Floor Standing Air Conditioners SG - SGFS60 - 440V Para sa Marine
5 Ton 440V-60Hz Floor Standing Air Conditioners SG - SGFS60 - 440V Para sa Marine - Image 2
, , , ,

5 Ton 440V-60Hz Floor Standing Air Conditioners SG – SGFS60 – 440V Para sa Marine

Add to wishlist
Compare

Ref: IMPA Code –  174781, 174782

Commercial Grade Compressor

Powerful Airflow

Energy Saving Feature

Quick Cooling

User-friendly Control Panel

Concealed Function Display

Optional – Heresite Coating

Compare

Capacity: 60000 BTU/HR, 5.0 Ton
Floor standing Type
Compressor Type: Rotary
Slim Design
Night Silent Mode
Auto 4 way swing (Horizontal & Vertical)
Digital Display on Unit
Quick Cooling
Quiet Operation
Refrigerant: R07C Commercial Compressor
Commercial Compressor
Low Power consumption
Dim: Indoor – 61 x 39 x 192.5 cm

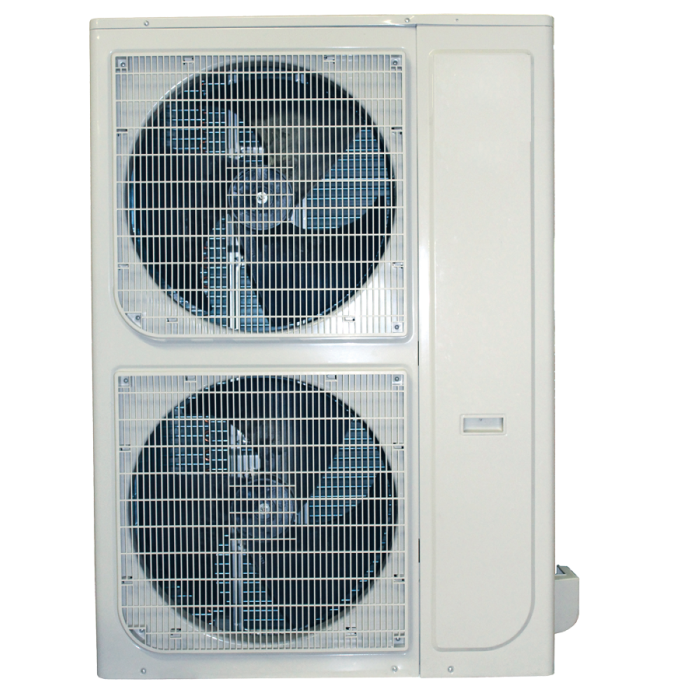

Outdoor: 90 x 35 x117 cm
60HZ-440V-3ph

Categories: , , , ,

Teknikal na Detalye

Model RLGT / SGFS60
Capacity 5 TON (60,000 BTU/hour)
Compressor Type Rotary
Fan Type Central
Temperature Range 17～30 ℃
Scroll Compressor Oo
Automatic Function Oo
Dehumidification Oo
Sleep Mode Oo
Automatic Oscillation (Vertical/Horizontal) Oo
Automatic Fan Oo
Silent Operation Oo
Timer Oo
Auto Restart Oo
Temperature Control Oo
Self-Diagnosis Oo
Turbo Cooling Oo
Low Voltage Operation Oo
Multiple Speed Selection Oo
Refrigerant Gas R410A
Air Flow Indoor Unit / Area 73–107 m²
Katangiang Elektrikal
Power Supply 440V / 60Hz / 3 Phases
Nominal Input Capacity / Current – T1 4520 W / 8.0 A
Nominal Input Capacity / Current – T3 5550 W / 9.5 A
Maximum Nominal Input Capacity / Current 7000 W / 13 A
Impormasyon sa Pag-install
Recommended Power Cable (Conductors) 3G4 N
Liquid Pipe Outer Diameter φ9.52 mm – 3/8 inches
Gas Pipe Outer Diameter Φ22 mm – 7/8 inches
Impormasyon sa Shipping
Indoor Unit Dimensions (H x W x D) 610 x 390 x 1925 mm
Outdoor Unit Dimensions (H x W x D) 900 x 350 x 1170 mm
Gross/Net Weight Indoor Unit 70 / 91 kg
Gross/Net Weight Outdoor Unit 99.2 / 110.8 kg
