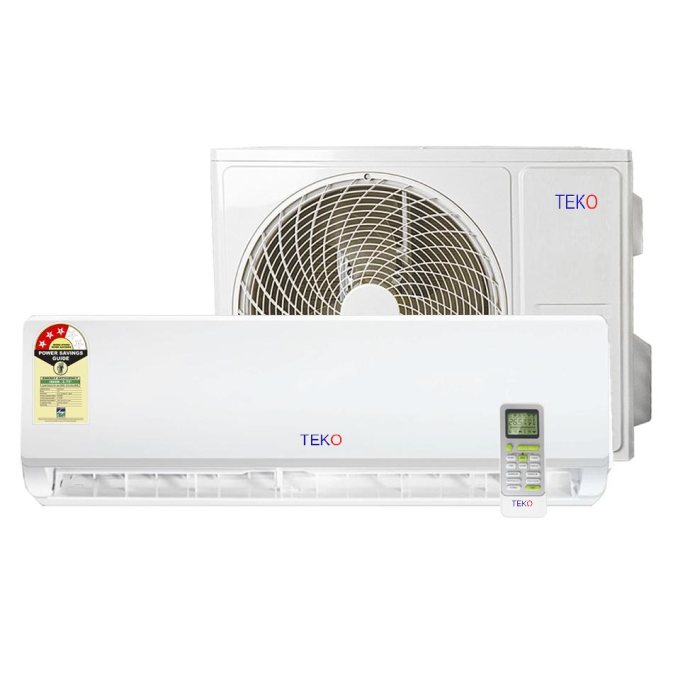

1 Ton 110V-60Hz Split Air Conditioners teko – SPAC-12MB – 110V For Marine


Ref: IMPA Code –  174781

Split Type Air Conditioner

Marine Variant

Environment-friendly R410 Refrigerant/Gas

Turbo fast cooling system

Multi-functional remote control

Compare

TEKO – SPAC-12MB
Capacity: 12000 BTU, 1.0 ton
Split Type Air Conditioner,
Marine Variant,
Environment-friendly R410 Refrigerant/Gas,
Turbo fast cooling system,
Multi-functional remote control, Digital Display,
Gree Compressor Silent operation
Made in Taiwan
60Hz-110V-120V-1PH
(5 meters installation kits included)
From ISO Certified factories

SKU: 5487FB8/22-17-2-3-1-1-1-1-2-2 Categories: , , , , ,
Brands

Teko

Technical Specifications

Model TEKO SPAC – 12
Capacity (Ton) 1 Ton
Capacity (BTU) 12,000
Capacity 1.25 HP / 3.5 kW / 25 m2
Type Split
Auto Swing Louver Horizontal
Air Flow Volume 550 m³/h
Auto Restart Yes
Auto Swing Yes
Temperature Indicator Yes
Remote Display type LCD
EER Cooling 3.16
Max. Discharge Pressure 4.2 Mpa
Max. Suction Pressure 1.18 Mpa
Noise level Indoor / Outdoor 42 dB / 49 dB (A)
Splash proof IPX 4
Refrigerant R410
Refrigerant Charged 650 g
HP. / LP. PS 4.15 MPa/1.15MPa
Electrical Details
Voltage 100~120V-1-60Hz
Rated Capacity (Watts) 3100 W
Rated Input Power (Watts) 981.5 W
Rated Input Current (Amp) 4.5 A
Max. Input Power 1325 A
Max. Input Current 12 A
Shipping Details
Unit Dim. Indoor 87.5 x 37.5 x 28.5 cm
Unit Dim. Outdoor 80 x 29 x 19 cm
Packed Unit Dim. Indoor 72 x 25.5 x 52 cm
Packed Unit Dim. Outdoor 84 x 34.5 x 60.5 cm
Indoor unit weight(Net) 8.5 kg
Outdoor unit weight(Net) 26 kg
Certification ISO 9001 : 2008
