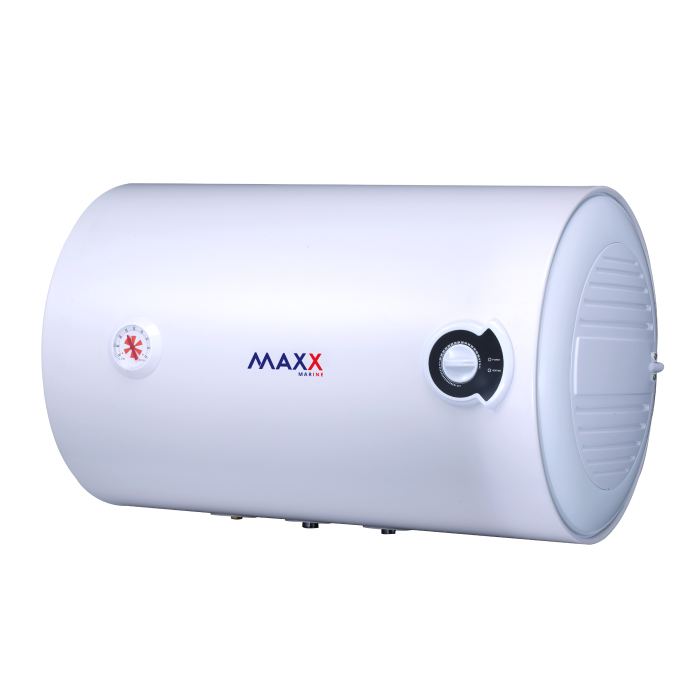

Anti-Dry Heating Protection
Round-shaped body / Horizontal Mounted
Over-Pressure Protection
Thermostat Control Knob
Compare
Features:
Capacity: 100L
Shape & Type – Round & Horizontal Mounting
Anti-Dry Heating Protection
Over-Pressure Protection
Thermostat Control Knob
High Protection Thermostat
Polyurethene Insulation
High Grade Heater for the Marine Industry
Electrical Specs: 110V – 60hz
| Model | MAXX-WH100YA 110 | |
| Capacity | 100 Liters | |
| Temperature Range | 30⁰C – 75⁰C | |
| Overpressure Protection | ✓ | |
| Insulation | Polyurethane | |
| Temperature Control | ✓ | |
| Temperature Indicator | ✓ | |
| Water Resistance Rating | IPX4 | |
| Overheating Protection | ✓ | |
| Mounting Information | ||
| Mounting Type | Wall Mount | |
| Mounting Orientation | Horizontal | |
| Hole Distance | 200 mm | |
| Inlet Pipe Diameter | Ø G1/2 | |
| Outlet Pipe Diameter | Ø G1/2 | |
| Electrical Features | ||
| Rated Voltage | 110V | |
| Rated Frequency | 60Hz | |
| Rated Power | 1500W | |
| Rated Current | 16A | |
| Rated Pressure | 0.8 MPa | |
| Electrical Class | Type I | |
| Shipping Details | ||
| Dimensions (W x D x H) | Product | Ø 440 x 925 mm |
| Box | 495 x 495 x 970 mm | |
| Weight | Net | 15 kg |
| Gross | 17 kg | |
| Certification | CE | |
