Air Conditioning, Portable Integrated AC

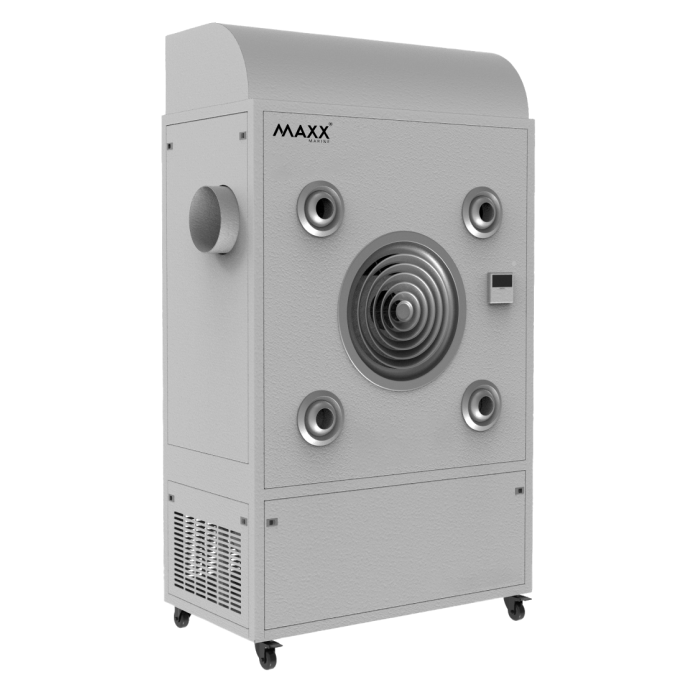

2.0 Ton 220V-50/60Hz Integrated Portable Air Conditioners MAXX-IMAC24WE 220V For Marine

Name: 2.0 Ton 220V-50/60Hz Integrated Portable Air Conditioners MAXX-IMAC24WE 220V For Marine - Teko
SKU: 5487FB8/22-17-2-3-1-1-1-1-2-1-1-1-1-2-1-1

Add to wishlist

Compare

Ref: IMPA Code – 174782

Commercial Grade Integrated Air Conditioner

Easy to Move

High-efficient Rotary Compressor

4 Independent Movable Vents

LCD Display Controls

Automatic and Manual Drtain Options

Compare

Description
Specification

Capacity: 2.1 ton (24000 BTU/Hr )
Commercial Grade
Integrated Portable Air Condition
High-efficient Rotary Compressor
18°C – 45°C Ambient Temperature
Automatic & Manual Drainage Options
50/60Hz-220V-1ph

SKU: 5487FB8/22-17-2-3-1-1-1-1-2-1-1-1-1-2-1-1 Categories: Air Conditioning, Portable Integrated AC

Technical Specifications

Model	MAXX-IMAC24WE 220V
Cooling Capacity	24000 BTU (2 Ton Capacity)
Capacity	2.6 HP / 6.14 kW / 50 m²
Compressor Type	High Efficiency Rotary Compressor
Application Area	100 m² – 150 m²
Ambient Temperature	18 – 45°C
Number of Air Outlets	4
Air Outlet Type	Adjustable Directions
Refrigerant Gas	R410
Maximum Air Flow	6500 m³/hour
Discharge Method	Automatic / Manual
LCD Screen	Yes
Electrical Specifications
Power Source	AC 220–240V / 1 Phase / 50/60Hz
Nominal Input Power	3.2 kW
Nominal Current	15 A
Shipping Information
Product Dimensions (W x D x H)	1400 x 700 x 2100 mm
Net Weight	335 kg
