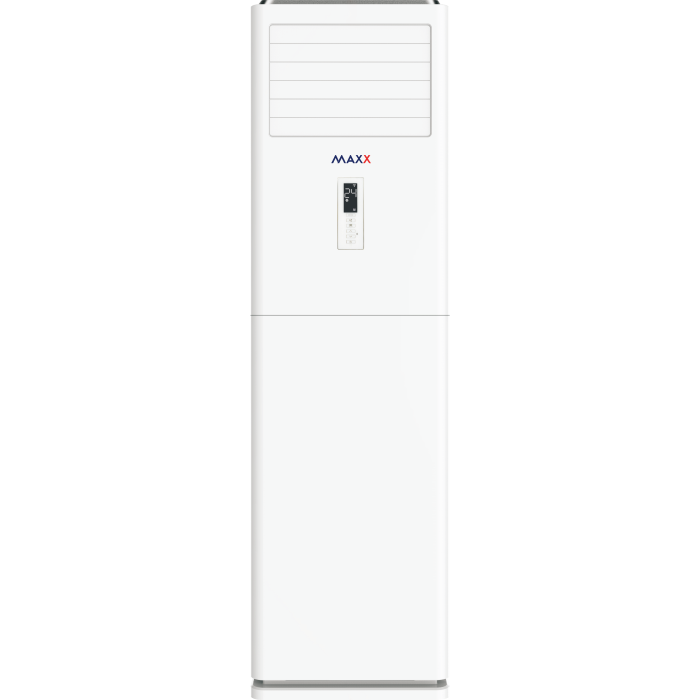

Commercial Grade Compressor
Inverter Compressor
Powerful Airflow
Auto 4 way swing (Horizontal & Vertical)
Energy Saving Feature
Rotary Compressor
User-friendly Control Panel
Concealed Function Display
Optional – Heresite Coating
Compare
Cooling Capacity: 5.0 TON (60000 BTU/Hr)
Floor standing Type
Auto Defrost / Auto Restart
Auto 4 way swing (Horizontal & Vertical)
Night Silent mode
Compressor Type: Rotary
Refrigerant: R410
Concealed, Function Display on Unit Quick Cooling
Night Silent Mode
Quiet Operation & low power consumption,
Dim: Indoor (W x D x H) : 540 x 1725 x 350 mm
Dim: Outdoor (W x D x H) : 940 x 1315 x 340 mm
50HZ-220V
| Model | MAXX-FSAC60SY-220 | |
| Capacity (Ton) | 5 Ton | |
| Capacity (BTU) | 60,000 | |
| Capacity | 23.90 HP / 17.58 kW | |
| Type | Vertical / Standalone | |
| Operating Temperature | 16°C – 45°C | |
| Ambient Temperature | 7°C – 43°C | |
| Application Area | 42.5 – 71 m³ | |
| Automatic Swing Direction | Horizontal | |
| Airflow Volume | 2000 m³/h | |
| Automatic Restart | Yes | |
| Automatic Swing Motion | Yes | |
| Temperature Indicator | Yes | |
| Remote Control Screen Type | LCD | |
| Cooling Efficiency (EER) | 2.98 W/W | |
| Maximum Discharge Pressure | 4.5 MPa | |
| Maximum Suction Pressure | 1.5 MPa | |
| Compressor Type | Inverter | |
| Refrigerant Gas | R410 | |
| Refrigerant Gas Charge | 2600 g | |
| Noise Level – Indoor Unit | 44 dB(A) | |
| Noise Level – Outdoor Unit | 52 dB(A) | |
| Splash Protection | IPX4 | |
| Pipe Connections | ||
| Liquid Pipe Diameter | 9.52 mm | |
| Gas Pipe Diameter | 19.05 mm | |
| Maximum Distance Between Indoor and Outdoor Units | 15 meters | |
| Maximum Height Difference Between Indoor and Outdoor Units | 5 meters | |
| Electrical Characteristics | ||
| Voltage | 220~240V-1-50Hz | |
| Maximum Input Current | 28.5 A | |
| Maximum Input Power | 6000 W | |
| Shipment Information | ||
| Product Dimensions – Indoor Unit | 540 x 1725 x 350 mm | |
| Product Dimensions – Outdoor Unit | 940 x 1315 x 340 mm | |
| Package Dimensions – Indoor Unit | 707 x 2048 x 531 mm | |
| Package Dimensions – Outdoor Unit | 1060 x 1385 x 435 mm | |
| Indoor Unit Weight (Net/Gross) | 50 / 60 kg | |
| Outdoor Unit Weight (Net/Gross) | 75 / 78 kg | |
| Certification | ISO 9001:2008 | |
