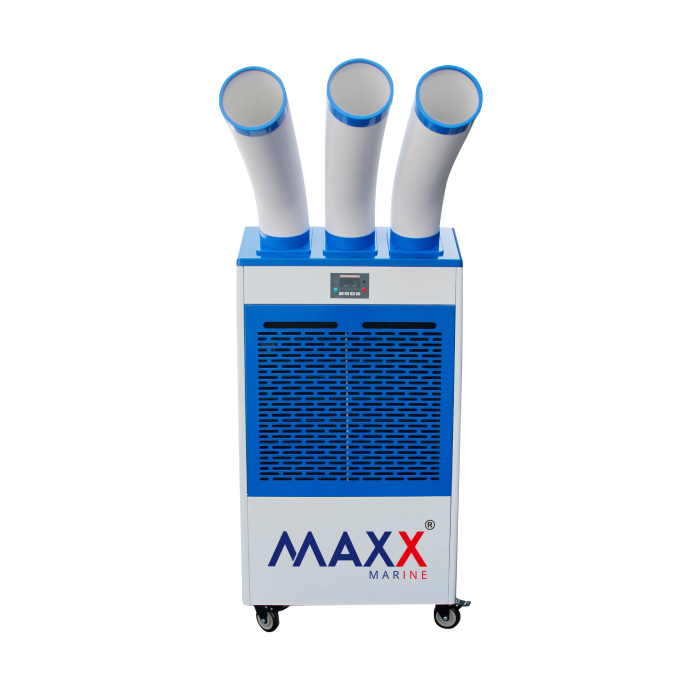

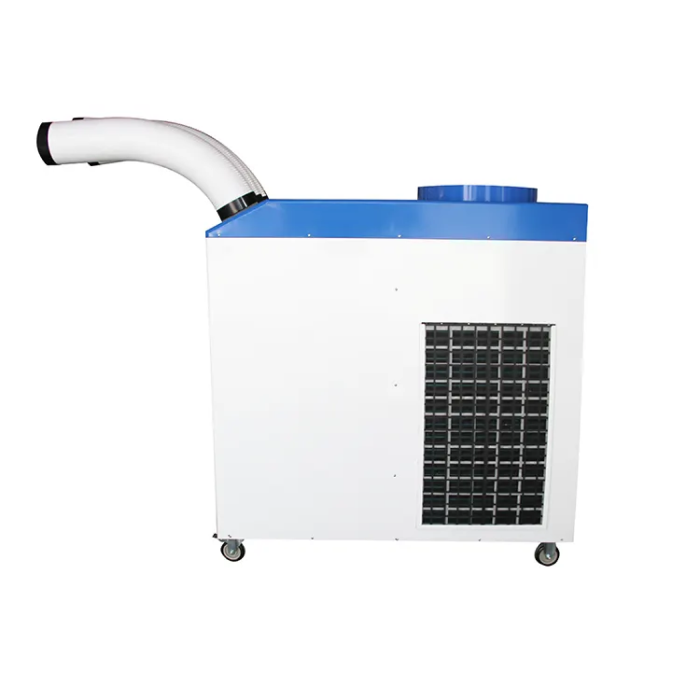

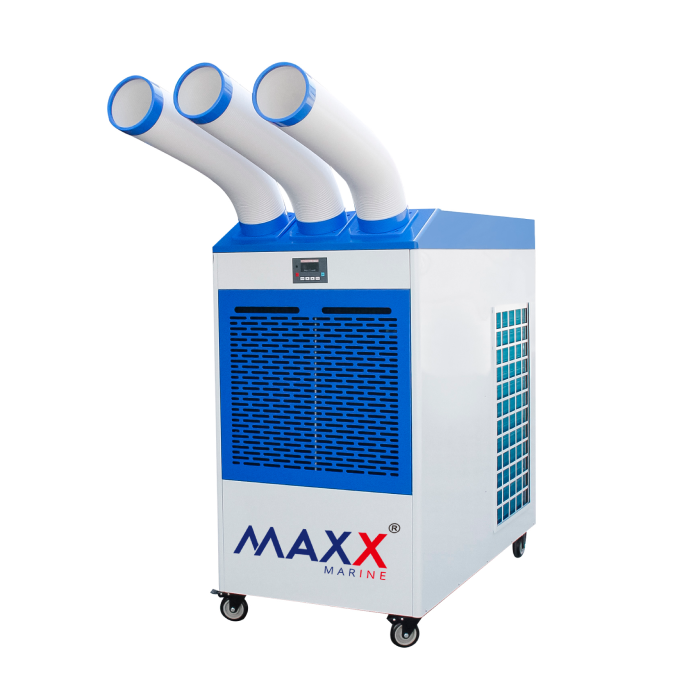

5.0 Ton 440V-60Hz Commercial Portable Air Conditioners MAXX CO-PAC60ZR 440V for Marine

Name: 5.0 Ton 440V-60Hz Commercial Portable Air Conditioners MAXX CO-PAC60ZR 440V for Marine - Teko
SKU: 5487FB8/22-17-2-3-1-1-1-1-2-1-1-1-1-2-1-1-1

Add to wishlist

Compare

Ref: IMPA Code – 174782

Commercial Grade Portable Air Conditioner

High-efficient GMCC Rotary Compressor

3 Speed fan, Auto Swing, Cooling/Fan/Dehumidifying

LCD Display with Fault Diagnosis Display

Automatic Drainage

Compare

Description
Specification

MAXX – CO-PAC60ZR 440
Capacity: 5.0 ton (60000 BTU)
Commercial Grade Portable Air Condition
Auto-Drain Function
Hydrophilic Aluminium Fin-stock
Evaporator / Compensator
PET Dust-Proof Filter
Inner Thread Copper Tube
Automatic fault diagnosis display
Waterproof electrical components
High-efficient GMCC Rotary Compressor
3 Speed fan, Auto Swing, Cooling/Fan/Dehumidifying
24 Hour Timer, Compact and easy to move
60Hz-440V-1ph

SKU: 5487FB8/22-17-2-3-1-1-1-1-2-1-1-1-1-2-1-1-1 Categories: Air Conditioning, IMPA, Portable ACs, Portable ACs IMPA, Portable ACs IMPA 174781, Portable ACs IMPA 174782, Portable Commercial AC's-220V-440V, Portable Commercial AC's-440V/60Hz

Technical Specifications

Model		MAXX – CO-PAC60ZR 440
Cooling Capacity	BTU	60,000
	Tons	5.0 Tons
	HP	6.1 HP
	Kilowatts	17.5 kW
	Covered Area	120 m²
Compressor Type		Rotary
Air Flow		3000 m³/h
Operating Temperature		18-45°C
Refrigerant Gas		R410
Maximum Suction Pressure		1.2 MPa
Maximum Discharge Pressure		4.5 MPa
Drainage Tank		No
Drainage Method		Automatic Drainage
LCD Control and Fault Detection		Yes
Number of Air Outputs		3
Electrical Features
Voltage		440 V – 3 Phases
Frequency		60 Hz
Nominal Power		8 kW
Nominal Current		21 A
Shipping Information

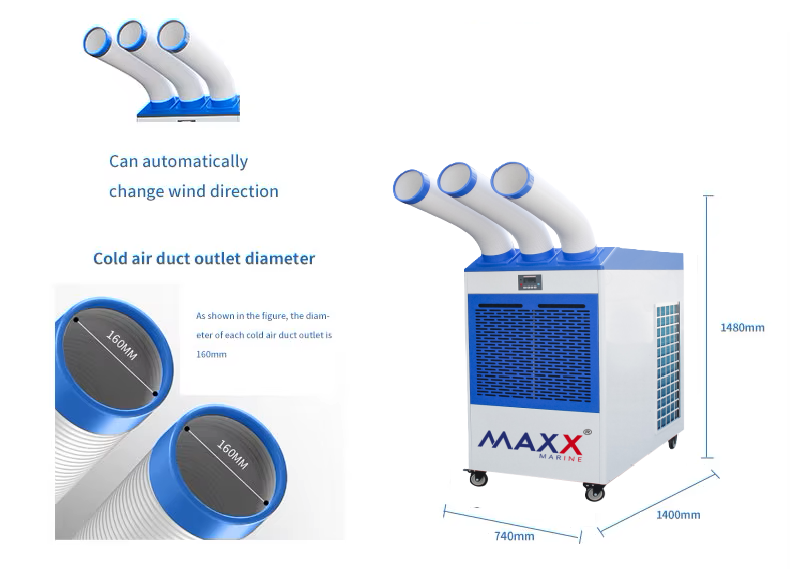

Unit Dimensions		1400 x 740 x 1480 mm
Packaging Dimensions		1580 x 910 x 1610 mm
Net Weight		280 kg
Gross Weight		298 kg
