3-Point mounting system
Power: 1 Hp
Safe to use – designed without blades
Quiet operation
Easy to install – can easily be fitted to new or existing sinks
Dispose of most food waste instantly
Advance Insulation Material
220V-50/60hz
Food Waste Disposers, Food Waste Disposers IMPA, Galley Equipment, IMPA, IMPA 175582

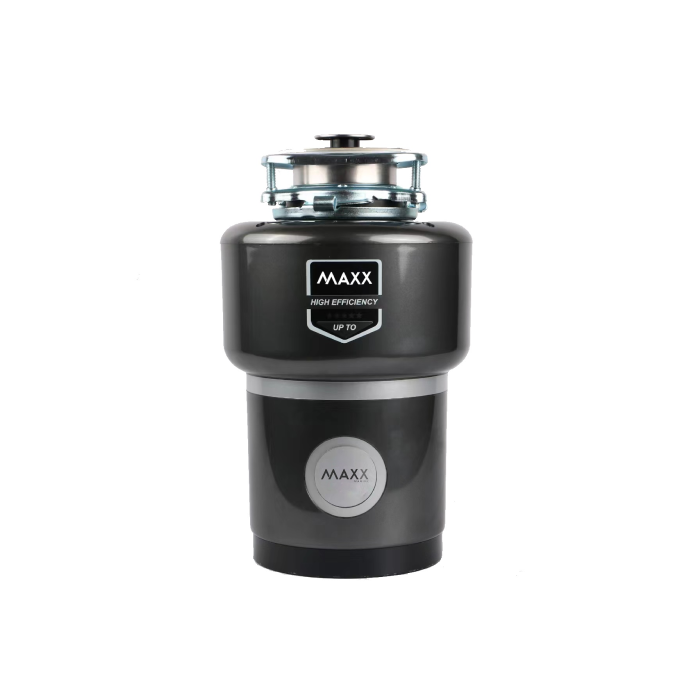

Waste Disposer 220V MAXX – FD-1.0 For Marine
The ideal choice for large households or those who have a large amount of food waste to dispose of, the MAXX Waste Disposal unit grinds your food scraps quickly, efficiently and hygienically, reducing the need to fill your kitchen bin.
Ref: IMPA Code – 175582
1 Hp Power
3-Point Mounting System.
Anti-Corrosion Stainless Steel Cutter
Built-in air switch
Low Noise Operation
1-stage stainless steel grinding system
Compare
| Brands | MAXX |
|---|
Technical Specifications
| Nominal Power | 1 Hp |
| Power Supply Type | Continuous |
| On/Off Control | Built-in Air Switch |
| Motor | Single-phase |
| Duty Rating | Intermittent |
| Lubrication | Permanently Lubricated Upper and Lower Bearings |
| Grinding Chamber Capacity | 980 ml |
| Average Water Usage | Approximately 4.0 L per Person per Day |
| Grinding Technology | 1-Stage Grinding Technology |
| Grinding Level | Class 4 |
| Rotation Speed | 4000 rpm |
| Grinding Cavity Volume | 1500 ml |
| Crushing Cavity | 5.2 kg/m |
| Grinding Capacity / Crushing Particle Size | <1.0 mm |
| Optional Sink Connector | 114 / 140 / 145 / 160 / 165 / 180 mm |
| Motor Type | Permanent Magnet DC Motor |
| Grinding Chamber Material | Stainless Steel 304 |
| Grinding Cutter / Blade | Stainless Steel 304 |
| Feeding Mouth Material | Stainless Steel 304 |
| Housing Material | High-Strength PA6 Plastic |
| Control Mode | Air Switch / Remote Control |
| Noise Level | <50 dB |
| Acoustic Insulation System | Innovative Noise Reduction Technology |
| Safety Protection | Overload |
| Dishwasher Drain Output | Yes |
| Drain Connection | 1-1/2″ (3.81 cm) |
| Includes | Disposal Device, Quick Mount for Sink, Noise Reduction Collar for Sink, Wrench, Plug, Anti-vibration Mount, Power Cable Kit, Air Switch, Drain Hose, Dishwasher Interface, Screws, Screw Press Plate |
| Electrical Details | |
| Power (W) | 390 W / 560 W |
| Voltage | 220V |
| Frequency | 50 / 60 Hz |
| Average Electricity Usage | 3-4 kWh / year |
| Shipping Details | |
| Product Dimension (W x D x H) | 210 x 210 x 340 mm |
| Packaging Dimension (W x D x H) | 290 × 380 × 390 mm |
| Weight (Gross / Net) | 8.1 / 7.3 kg |
