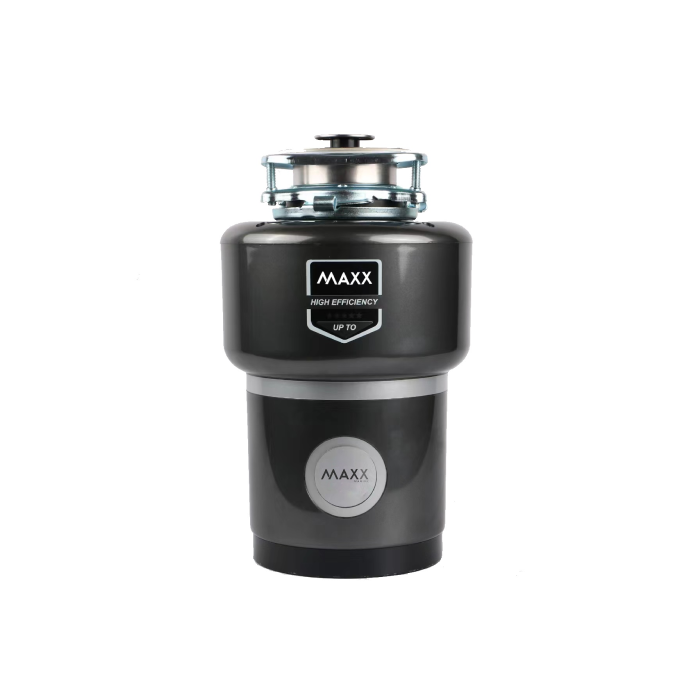

Waste Disposer 220V MAXX – FD-1.0 For Marine


The ideal choice for large households or those who have a large amount of food waste to dispose of, the MAXX Waste Disposal unit grinds your food scraps quickly, efficiently and hygienically, reducing the need to fill your kitchen bin.

Ref: IMPA Code –  175582

1 Hp Power

3-Point Mounting System.

Anti-Corrosion Stainless Steel Cutter

Built-in air switch

Low Noise Operation

1-stage stainless steel grinding system

Compare

3-Point mounting system
Power: 1 Hp
Safe to use – designed without blades
Quiet operation
Easy to install – can easily be fitted to new or existing sinks
Dispose of most food waste instantly
Advance Insulation Material
220V-50/60hz

SKU: 5487FB8/22-2-1-1-1-1-2-3-1-1-2-1-1-1-1-1-1-1-1-2-1-2-3 Categories: , , , ,
Brands

MAXX

Technical Specifications

Rated Power 1 Hp
Type of Feed‎ Continuous
On/Off Control Built-in Air Switch
Motor Single Phase
Time Rating Intermittent
Lubrication Permanently Lubricated Upper & Lower Bearings
Grind Chamber Capacity 980 ml
Average Water Usage Approximately 4.0 L per Person per Day
Grind Technology 1-Stage Grind Technology
Grinding Level Class 4
Rotating Speed 4000 rpm
Grinding Cavity Volume 1500 ml
Crushing Cavity 5.2 kg/m
Grinding Ability/Crushing Particle <1.0 mm
Optional Sink Connector 114 / 140/ 145/ 160 /165 /180mm
Motor Type Permanent Magnet DC motor
Grinding Chamber Material Stainless Steel 304
Grinding Cutter/Blade Stainless Steel 304
Feeding Month Material Stainless Steel 304
Housing Material High Strength PA6 Plastic
Control Way Air Switch/Remote Control
Noise Level <50db
Sound Insulating System Innovative Noise Reduction Technology
Safety Protection Overload
Dishwasher Drain Outlet Yes
Drain Connection 1-1/2″ (3.81 cm)
Includes Disposer, Quick-lock sink mount, Quiet collar
sink baffle, Wrench, Stopper, Antivibration mount, power cord kit, air switch, drain pipe,
dishwasher interface, bolts, and Crew Press Plate.
Electrical Details
Power (W) 390W / 560W
Voltage 220V
Frequency 50 / 60hz
Average Electrical Usage 3-4 KWH / year
Shipping Details
Product Dimension (WxDxH) 210 x 210 x 340 mm
Packing Dimension (WxDxH) 290 × 380 × 390 mm
Weight (Gross/Net) kg 8.1 / 7.3 kg
