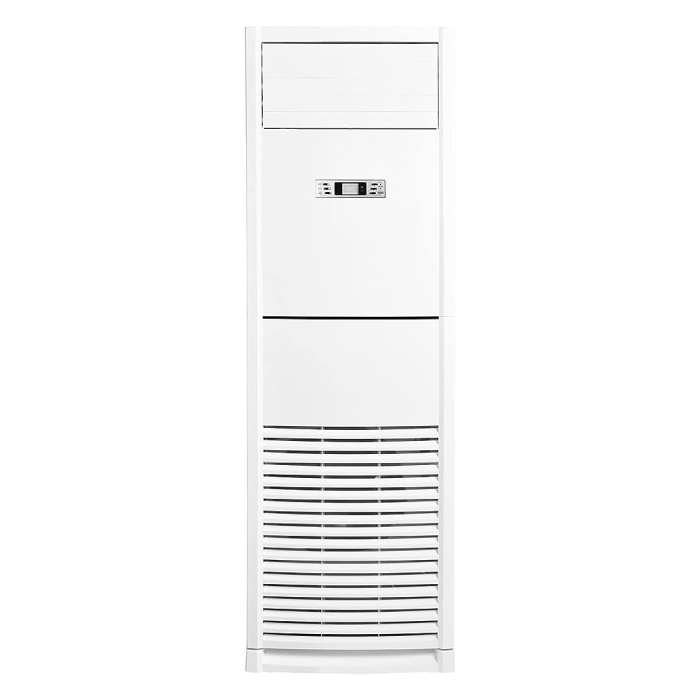

4 Ton 220V-60Hz Floor Standing Air Conditioners SG – SG-MAXX KSGFS48i Para sa Marine


Ref: IMPA Code –  174782

Commercial Grade Compressor

Powerful Airflow

Cool & Heat options

Auto 4 way swing (Horizontal & Vertical)

Energy Saving Feature

Inverter Compressor

User-friendly Control Panel

Concealed Function Display

Optional – Heresite Coating

Compare

Cooling Capacity: 4.0 TON (42000 BTU/Hr)
Floor standing Type
Auto Defrost / Auto Restart
Auto 4 way swing (Horizontal & Vertical)
Night Silent mode
Inverter Type Rotary Compressor
Heat & Cool Options
Compressor Type: Rotary
Refrigerant: R410
Concealed, Function Display on UnitQuick Cooling
Night Silent Mode
Quiet Operation & low power consumption,
Dim: Indoor (W x D x H) : 629 x 456 x 1935 mm
Dim: Outdoor (W x D x H) : 952 x 415 x 1330 mm
60HZ-220V



Teknikal na Detalye

Model SG-MAXX KSGFS48i
Capacity 4 Ton / 48,000 BTU
Capacity 5.25 HP / 14 kW / 100 m2
Compressor Type Rotary
Fan Type Centrifugal
Temperature Range 16~31 ℃
Heating and Cooling Function Oo
Inverter Compressor Oo
Dehumidification Oo
Sleep Mode Oo
Automatic Oscillation (Vertical/Horizontal) Oo
Automatic Fan Oo
Quiet Operation Oo
Timer Oo
Auto Restart Oo
Temperature Indicator Oo
Self-Diagnosis Oo
Turbo Cooling Oo
Low Voltage Operation Oo
Multiple Speed Options Oo
Refrigerant / Charge R410A / 4.3 kg
Air Flow / Indoor Unit Area 2050 m³/h / 1206.59 CFM
Elektrikal na Detalye
Power Supply 220V-230V – 60Hz – 1 Phase
Cooling Power Consumption / Current 6000 Watt / 15.2 A
Heating Power Consumption / Current 4500 Watt / 19.5 A
Rated Power / Current 6800 Watt / 27 A
Impormasyon sa Pag-install
Recommended Cable (Flexible) 3G4 N
Liquid Pipe Diameter φ9.52 mm – 3/8 inch
Gas Pipe Diameter Φ19.05 mm – 3/4 inch
Impormasyon sa Shipping
Indoor Unit Dimensions (H x W x D) 189 x 58.2 x 38.8 cm
Outdoor Unit Dimensions (H x W x D) 138.5 x 102 x 39.6 cm
Indoor Unit Weight (Gross/Net) 76.9 / 58.2 kg
Outdoor Unit Weight (Gross/Net) 89.6 / 100 kg
