8″ (200 mm) Diameter
IExplosion Proof
Axian Fan 600rpm
883 CFM (24 m3/min) air capacity
58 Pa Pressure
CE Certified
Electrical Specs: 220V – 50/60Hz
IMPA, Others

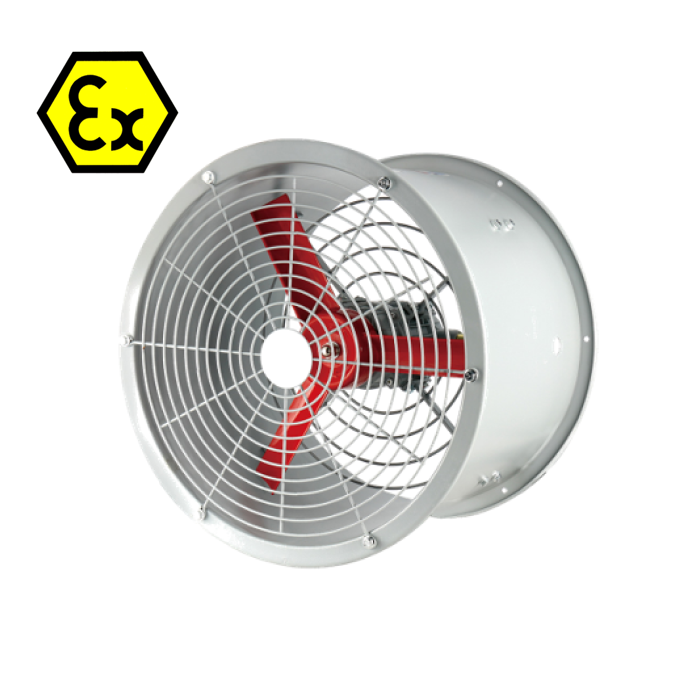

8″ Expolsion Proof Ventilation Fans – 220V-50/60Hz MAXX-EXVF2-220 For Marine
Ref: IMPA Code – 591403
8″ fan blade (200mm)
Explosion Proof
Dynamically designed fan housing to optimize airflow efficiency
Protective guards meeting OSHA standards
High static pressure Impeller providing a higher airflow rate
Powered by a 90 W motor
Compliance: Certified to CE
Compare
| Brands | MAXX |
|---|
Technical Specifications
| Model | MAXX-EXVF2 – 220 |
| Fan Diameter | 8 inches / 200 mm |
| Type | Axial Fan |
| Number of Blades | 3 |
| Color | Safety Orange |
| Speed | 600 rpm |
| Free Air Capacity | 883 CFM (24 m³/min) |
| Pressure | 58 Pa |
| Motor Thermal Protection | Yes |
| Certification | CE |
| Electrical Features | |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Power | 90 W |
| Other Details | |
| Outer Cable Diameter | Φ10~Φ14 |
| Female Thread Pipe Inlet | G3/4″ |
| Motor Type | S1 |
| Insulation Class | Class F |
| Explosion Resistance Class | Exd |
