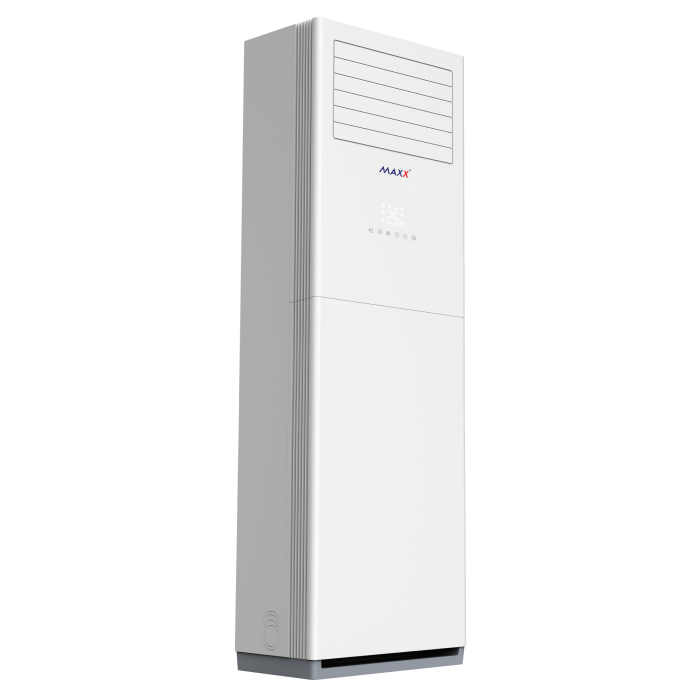

3 Ton 220V-60Hz Inverter Floor Standing Air Conditioners MAXX FSAC36SY-220 For Marine


Ref: IMPA Code –  174782

Inverter Compressor Compressor

Powerful Airflow

Energy Saving Feature

Quick Cooling

User-friendly Control Panel

Concealed Function Display

Optional – Heresite Coating

Compare

MAXX – FSAC-36SY – 220
Capacity: 36000 BTU/HR, 3Ton
Floor standing Type
Inverter Compressor
Refrigerant: R32
Commercial Compressor
Low Power consumption
Dim: Indoor – 540 x 1725 x 350 mm
Outdoor: 980 x 805 x 330 mm
60HZ-220V

Brands

Maxx

Technical Specifications

Model MAXX-FSAC36SY -220
Capacity (Ton) 3 Ton
Capacity (BTU) 38,000
Capacity 3.5 HP / 10.5 kW
Type Floor Standing
Operational Temperature 16°C – 45°C
Ambient Temperature 7°C – 43°C
Application Area 40 – 65 m³
Auto Swing Louver Horizontal
Air Flow Volume 980 m³/h
Auto Restart Yes
Auto Swing Yes
Temperature Indicator Yes
Remote Display type LCD
EER Cooling 8.50 W/W
Max. Discharge Pressure 4.2 Mpa
Max. Suction Pressure 1.2 Mpa
Compressor Type Inverter
Refrigerant R410
Refrigerant Charged 1250 g
Noise Level – Indoor 47 dB (A)
Noise Level – Outdoor 60 dB (A)
Splash Proof IPX 4
Pipe Connections
Liquid 9.52 mm
Gas 15.88 mm
Max. distance between Indoor and Outdoor 15 meters
Max. diff. in level between Indoor and outdoor 5 meters
Electrical Details
Voltage 220~240V-1-60Hz
Max. Input Current (Amp) 12.8 A
Max. Input Power (Watts) 3820 W
Shipping Details
Product Dim. – Indoor 540 x 1725 x 350 mm
Product Dim. – Outdoor 980 x 805 x 330 mm
Box Dim. – Indoor 700 x 1850 x 510 mm
Box Dim. – Outdoor 1088 x 900 x 404 mm
Indoor unit weight(Net/Gross)
Outdoor unit weight(Net/Gross)
Certification ISO 9001 : 2008
